Can Quartz Handle Heat? Practical Limits for Homeowners

Quartz is heat-resistant but not heatproof. Treat approximately the temperature of boiling water as your practical ceiling: a warm coffee mug is fine, but a cast-iron skillet straight from a very hot burner will likely cause permanent damage. Caesarstone, one of the most widely specified engineered quartz brands, states this plainly in its care guidance and recommends using a trivet or hot pad any time cookware leaves the stove or oven.

Quick dos and don’ts:

• Do set a silicone trivet or thick wooden cutting board under any hot pan, slow cooker, or air fryer before it touches the surface.
• Do place hot mugs, kettles, and coffee carafes directly on quartz — brief contact at near-boiling temperatures is generally safe.
• Don’t set pans directly from a burner or oven onto quartz, even for a few seconds.
• Don’t rely on a folded dish towel or oven mitt as a barrier — they compress and conduct heat faster than you’d expect.
• Don’t assume your warranty covers heat damage. Most don’t.

Key Takeaways

Quartz is heat-resistant but not heatproof: treat 300°F (150°C) as your practical ceiling, always use a trivet for hot cookware, and understand that most heat damage is permanent and excluded from manufacturer warranties.

Table of Contents

• How much heat can quartz actually handle in a real kitchen?
• Why heat damages quartz: what’s actually happening inside the slab
• How to spot heat damage on your quartz countertop
• Practical prevention: protecting your quartz every day
• Quartz vs. granite and other surfaces: how heat resistance compares
• If your quartz is heat-damaged: what to do next
• What manufacturers say about heat and quartz warranties
• Installer perspective: how Trussell’s Transformations reduces heat risk from day one
• Quartz countertop assessment and installation in Albuquerque
• Sources

How much heat can quartz actually handle in a real kitchen?

Industry guidance consistently cites roughly 150°C (300°F) as a conservative ceiling for most engineered quartz products. Some high-performance formulations tolerate more, but heat tolerance varies meaningfully by brand and resin formulation, so that 300°F rule applies broadly and safely across most products on the market.

Time matters as much as temperature. Brief contact, say a warm pot set down for five seconds, carries far less risk than a slow cooker running for two hours in the same spot. Sustained heat allows the resin binder to soften gradually, even when the temperature stays below the acute damage threshold.

Real-world kitchen heat sources span a wide range:

• Coffee mug or kettle (near boiling, ~212°F / 100°C): Safe for direct contact.
• Slow cooker base (low setting, ~180–200°F): Borderline for extended contact. Use a trivet for sessions longer than 30 minutes.
• Electric skillet (200–250°F): Borderline; a trivet is the right call.
• Oven pan or baking sheet (400–450°F): High risk of permanent resin damage.
• Cast-iron skillet from a high burner (500°F+): Severe risk; never place directly on quartz.

Hot pans from stovetops or ovens are the leading cause of quartz heat damage in residential kitchens, precisely because they routinely exceed the resin threshold by 150°F or more.

Why heat damages quartz: what’s actually happening inside the slab

Engineered quartz is composed of roughly 90–93% ground quartz mineral dispersed in a polymer resin matrix, with the resin making up approximately 7–10% of the total composition. The quartz mineral itself is highly stable under heat. The resin is not.

Think of it this way: the quartz particles are like gravel embedded in epoxy. The gravel handles heat fine. The epoxy softens, discolors, and eventually breaks down well before the gravel would. That’s the fundamental vulnerability of any engineered quartz surface.

Two distinct failure mechanisms are worth understanding:

• Resin degradation: Sustained or intense heat softens the polymer binder, causing yellowing, dull patches, or a whitish haze. This is a chemical change, not surface residue, and it does not clean off.
• Thermal shock: A very hot object placed on a cold slab creates rapid, localized thermal expansion. The surface expands faster than the material beneath it, generating internal stress. The result can be fine crack lines (crazing) or, in severe cases, a visible fracture, especially near cooktop cutouts or thin edge strips where the slab has less mass to absorb the stress.

Pro Tip: Thicker slabs (3cm vs. 2cm) distribute thermal stress more evenly and are less prone to thermal-shock cracking near cutouts. If you cook heavily, ask your fabricator about slab thickness before you specify.

How to spot heat damage on your quartz countertop

Not every mark on quartz is permanent, and knowing the difference saves you from either panicking unnecessarily or scrubbing a scorch that will never come off.

Common heat-damage types:

• Scorch discoloration: Yellow, brown, or dull whitish patches where the resin has been chemically altered. These do not respond to cleaning.
• Crazing: A network of fine surface cracks from thermal shock, often visible in raking light.
• Softened or rough finish: A localized area where the polished surface feels slightly textured or matte compared to surrounding areas.
• Residue marks: Dark rings or stains from the pan itself (grease, carbon) that sit on top of the surface rather than within it.

To tell the difference between residue and true scorch, apply a small amount of a non-abrasive cleaner (a pH-neutral stone cleaner or a drop of dish soap) and gently wipe. Residue lifts. A true scorch stays exactly as it was.

Pro Tip: Before calling a fabricator, photograph the mark from two angles: straight down and at a low raking angle with a light source to one side. The raking shot reveals crack lines that a top-down photo misses entirely, and fabricators need both to give you an accurate repair estimate.

A fabricator can sometimes improve light surface discoloration through careful polishing, but deep burns or thermal-shock cracks typically require section replacement. Polishing removes a thin layer of surface material; it cannot reverse a chemical change that runs deeper than that layer. Set realistic expectations before you invest in a repair attempt.

Practical prevention: protecting your quartz every day

Prevention is the only reliable strategy here. Once the resin is damaged, your options are limited and expensive. The good news is that the right habits cost almost nothing and become automatic within a week.

Everyday protection rules:

• Always set a solid trivet under any cookware removed from the oven or burner before it touches the counter.
• Use silicone trivets rated to 400–500°F, thick wooden cutting boards, or closed-weave hot pads as your primary barriers. These are the most effective and widely available options.
• Avoid thin kitchen towels, folded paper towels, or oven mitts as direct barriers. They compress under weight and conduct heat far faster than a solid trivet.
• For appliances with extended run times (slow cookers, air fryers, toaster ovens), place a trivet underneath before you start cooking, not after.
• Keep a dedicated trivet permanently stationed beside your range. If it’s already there, you’ll use it every time.

What works and what doesn’t:

Pro Tip: Station a silicone trivet permanently on the counter beside your range, not in a drawer. The one-second friction of opening a drawer is enough to make you skip it when you’re moving a hot pan fast.

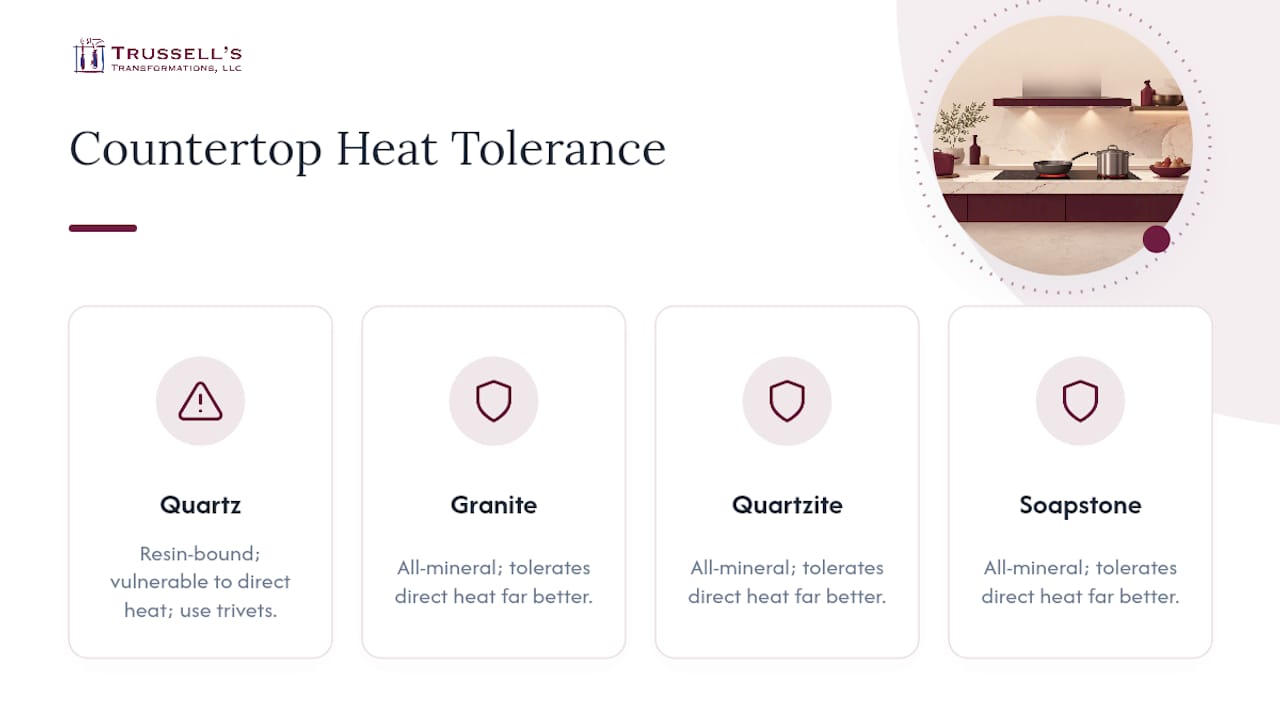

Quartz vs. granite and other surfaces: how heat resistance compares

Natural stone countertops behave differently under heat because they lack the polymer resin that makes engineered quartz vulnerable. Granite, quartzite, and soapstone are composed entirely of mineral material, which tolerates direct heat far better than any resin-bound engineered surface. For a detailed breakdown of how these materials compare across all performance categories, the quartz vs. granite comparison guide at Trussell’s Transformations covers the full picture.

The practical takeaway: if you cook at high heat frequently and want to skip the trivet habit, natural stone is the more forgiving choice. Quartz wins on stain resistance, color consistency, and low maintenance in almost every other category. The right choice depends on how you actually cook.

Choose quartz if stain resistance, consistent patterning, and low sealing maintenance are priorities and you’re willing to use trivets consistently.

Choose granite or quartzite if direct heat tolerance matters more than stain resistance or pattern uniformity.

If your quartz is heat-damaged: what to do next

Acting methodically after heat damage gives you the best chance of a good outcome, whether that’s a successful repair or a documented warranty claim.

1. Stop and photograph immediately. Take photos straight down and at a raking angle before cleaning anything. Note the date, what caused the damage, and how long the heat source was in contact.
2. Test for residue vs. true damage. Apply a pH-neutral cleaner gently with a soft cloth. If the mark lifts, it was surface residue. If it stays, you’re dealing with resin damage.
3. Do not scrub aggressively. Abrasive pads or harsh chemicals can worsen surface damage and may void your warranty by altering the surface before a fabricator can assess it.
4. Contact your fabricator or installer. Share your photos, the brand and collection name, and your purchase date. A fabricator can assess whether professional polishing is viable or whether section replacement is the realistic path.
5. Pull your warranty document. Locate the specific language around heat damage before assuming coverage. Most manufacturers exclude it explicitly.
6. Contact the manufacturer if the damage appears to be a product defect (e.g., crazing that occurred at temperatures well below the stated threshold). Have your invoice and installation date ready.

For Caesarstone-specific crack repair guidance, the Caesarstone crack repair guide at Trussell’s Transformations walks through realistic repair expectations and when replacement makes more sense than patching.

Realistic repair outcomes:

• Light surface discoloration: professional polishing may improve appearance, though results vary.
• Deep scorch or chemical discoloration: typically permanent; section replacement is the standard solution.
• Thermal-shock cracks: usually require section replacement; crack lines in engineered quartz do not bond reliably with standard fillers.

What manufacturers say about heat and quartz warranties

The language across major quartz manufacturers is consistent: quartz is heat-resistant, not heatproof, and direct contact with hot cookware is explicitly discouraged. Caesarstone, one of the most widely installed engineered quartz brands in the U.S., advises using trivets or hot pads under all hot cookware and appliances, and its warranty documentation reflects that heat damage from direct contact falls outside standard coverage.

This is not a fine-print technicality. It reflects the material science: the polymer resin in engineered quartz degrades under sustained or intense heat, and no manufacturing process currently eliminates that vulnerability entirely.

What to check in your warranty document:

• Look for language around “thermal shock,” “heat damage,” or “burns” in the exclusions section.
• Note whether the exclusion applies to all heat damage or only damage from specific sources (e.g., “open flame” vs. “hot cookware”).
• Check whether the warranty requires professional installation for coverage to apply — improper installation can void heat-related claims even when the damage itself would otherwise qualify.
• Document your installation date, installer name, and product collection. Manufacturers will ask for all of it.

Most heat damage claims are denied because the damage pattern (a circular scorch matching a pan base) makes the cause obvious and the exclusion clear. Your best protection is prevention, not warranty language.

Pro Tip: Ask your fabricator for a printed care card at installation and keep it with your appliance manuals. If you ever need to make a warranty inquiry, having the original care instructions on hand shows you followed manufacturer guidance, which strengthens your position.

Installer perspective: how Trussell’s Transformations reduces heat risk from day one

Specification and installation choices made before the slab goes in have a real impact on how your quartz performs over time. These are the decisions worth having with your contractor before the project starts.

Installer checklist for kitchens with heavy cooking:

• Specify 3cm slab thickness over 2cm wherever budget allows, particularly near cooktop cutouts. Thicker slabs absorb thermal stress more evenly.
• Keep thin quartz strips away from cooktop edges. Narrow sections near heat sources are the most vulnerable to thermal-shock cracking.
• Leave adequate expansion clearance around cooktop cutouts. A tight fit with no movement room concentrates stress at the cut edge.
• Position quartz landing zones slightly away from the immediate burner area where layout permits, even a few inches of distance reduces peak heat exposure.
• If a client cooks at high heat daily, discuss natural stone alternatives or heat-protective design elements (a stainless steel landing strip beside the range, for example) as part of the specification conversation.

Client communication practices that prevent post-installation issues:

• Provide a written care card at project handoff that covers heat limits, recommended cleaners, and what to avoid.
• Include a silicone trivet with every quartz countertop installation as a practical, low-cost gesture that reinforces the care message.
• Walk clients through the heat guidance in person at handoff, not just in writing. Homeowners retain it better when they hear it explained once clearly.

Understanding the difference between engineered quartz and natural quartz helps homeowners make better material choices from the start, and it’s a conversation Trussell’s Transformations has with every countertop client before a slab is ordered.

Pro Tip: If your kitchen layout puts the countertop landing zone directly beside a high-BTU gas range, ask your installer about a stainless steel or granite insert at that specific spot. It’s a small design detail that eliminates the highest-risk area entirely.

What experience with quartz actually teaches you

After more than 25 years of remodeling kitchens in Albuquerque, the pattern is clear: heat damage on quartz is almost always preventable, and it almost always comes as a surprise to the homeowner. Not because the information isn’t available, but because the limitation isn’t obvious from looking at the surface. Quartz looks and feels like stone. It behaves like stone in almost every way. The resin vulnerability is invisible until it isn’t.

The clients who never have a problem are the ones who got a clear explanation at specification time and kept a trivet beside the range from day one. That’s the whole strategy. The material is genuinely excellent for kitchens when it’s used correctly, and the advantages in stain resistance and consistency are real. The heat limit is simply a condition of those advantages, not a flaw.

Quartz countertop assessment and installation in Albuquerque

If you’re weighing quartz for a kitchen remodel, dealing with existing heat damage, or simply want a professional eye on your countertop options, Trussell’s Transformations offers local countertop assessments, repair coordination with fabricators, and full kitchen remodel services in Albuquerque, NM.

With over 25 years of hands-on remodeling experience, we help homeowners choose the right material for how they actually cook, not just how a surface looks in a showroom. When heat damage has already occurred, we coordinate with trusted local fabricators to assess whether polishing or section replacement is the right path, and we give you a straight answer about what’s realistic.

To get started, have your countertop brand name, collection, installation date, and photos of any damage ready. Visit our granite and quartz countertop services page to request a local assessment or installation quote, or browse our full home renovation services to see how a kitchen remodel comes together from countertops to cabinetry.

Sources

The following sources were used for technical guidance and practical thresholds in this article:

• Heat Marks on Quartz: Prevention & Repair
• How Heat Resistant Are Quartz Countertops?
• Are Quartz Countertops Heat Resistant? (Yes, But Not Heatproof) – Countertop Advisor
• Can Quartz Countertops Handle Heat? | O’Brien Cut Stone
• Engineered stone
