Calculate Grout Line Size Using ANSI’s 3× Rule for Homeowners

For most standard rectified tile, plan on a 1/8" grout line; drop to 1/16" for glass or very small rectified mosaics, and go to 3/16" or wider for calibrated, handmade, or offset-pattern large-format tile. The real rule behind all of it: ANSI A108.02 requires your grout joint to measure at least three times your tile’s facial size variation, with 1/16" as the absolute floor. Measure your actual tile batch before you commit to a width, or ask your installer for a mock-up first.

TL;DR:

• Most tiles require grout joints sized based on actual tile variation, with a minimum of one-sixteenth inch for glass and rectified tiles, but larger for handmade or offset large-format tiles.
• Measuring the facial variation of your tile batch and accounting for substrate unevenness are critical steps to determine the minimum grout width legally and aesthetically.
• Running-bond patterns for large tiles over 15 inches should limit offset to 33% to reduce warping and lippage issues, with maximum grout joints depending on tile type and measured warpage.
• Unsanded grout is suitable for joints smaller than 1/8 inch, while sanded or epoxy grout is better for wider joints, especially in high-traffic or wet areas, to prevent cracking and staining.
• Building a grout mock-up with actual tiles and your chosen spacers before installation helps avoid costly mistakes caused by misjudged tile variation, pattern alignment, or grout color.

Table of Contents

• What Determines Your Grout Line Size
• Grout Width Ranges by Tile Type
• Large-Format Tile, Patterns, and the 33% Offset Rule
• Choosing Grout Type to Match Your Joint Width
• How to Calculate Your Minimum Grout Joint
• Installer Lessons: Mistakes That Cost Homeowners Money
• Quick Reference: Grout Width by Tile Type
• When Designers Push for Tight Joints and When We Push Back
• Get a Mock-Up Before You Commit to a Grout Width
• Sources

What Determines Your Grout Line Size

Grout width isn’t a style preference you pick from a swatch card. It’s math, driven by how consistent your tiles actually are and where they’re going.

Tile format sets the baseline. Mosaics and small-format tile (2 inches and under) typically run tight, often 1/16" to 1/8", because the pieces are cut with tighter tolerances and small joints simply look proportional. Standard 12 by 12 inch tile usually lands at 1/8", as explained in the MSI porcelain and ceramic tile collection overview. Large-format tile, anything with a side over 15 inches, needs wider joints to hide the inevitable warping that comes with bigger slabs.

Edge finish matters just as much as size. Rectified tile is precision cut after firing, so edges are dead straight and nearly uniform, which is why it can run as tight as 1/16" to 1/8". Calibrated tile is sorted by thickness but not edge trimmed, so it carries more size variation and needs a wider joint, typically 3/16". Handmade tile varies the most, sometimes by as much as 1/8" tile to tile, and almost always needs 3/16" or larger to look intentional rather than sloppy.

Substrate flatness plays a quiet but critical role too. A slightly uneven subfloor or wall will make a tight joint reveal every high spot and dip. TCNA frames grout as a functional buffer for tile variation and substrate tolerance, not just an aesthetic finishing touch.

Room and function shift the calculation further:

• Floors in wet areas often benefit from a slightly wider joint for traction, since grout has more texture than glazed tile.
• Walls can run tighter since they carry no foot traffic or load.
• Heated floors need enough joint width to absorb expansion as the substrate warms and cools.
• Kitchen backsplashes near cooking areas favor tighter joints for easier wipe downs.

Tighter joints look sleeker but show dirt in fewer places while trapping more grime per inch. Wider joints clean easier in high-traffic zones but demand more sealing maintenance over time.

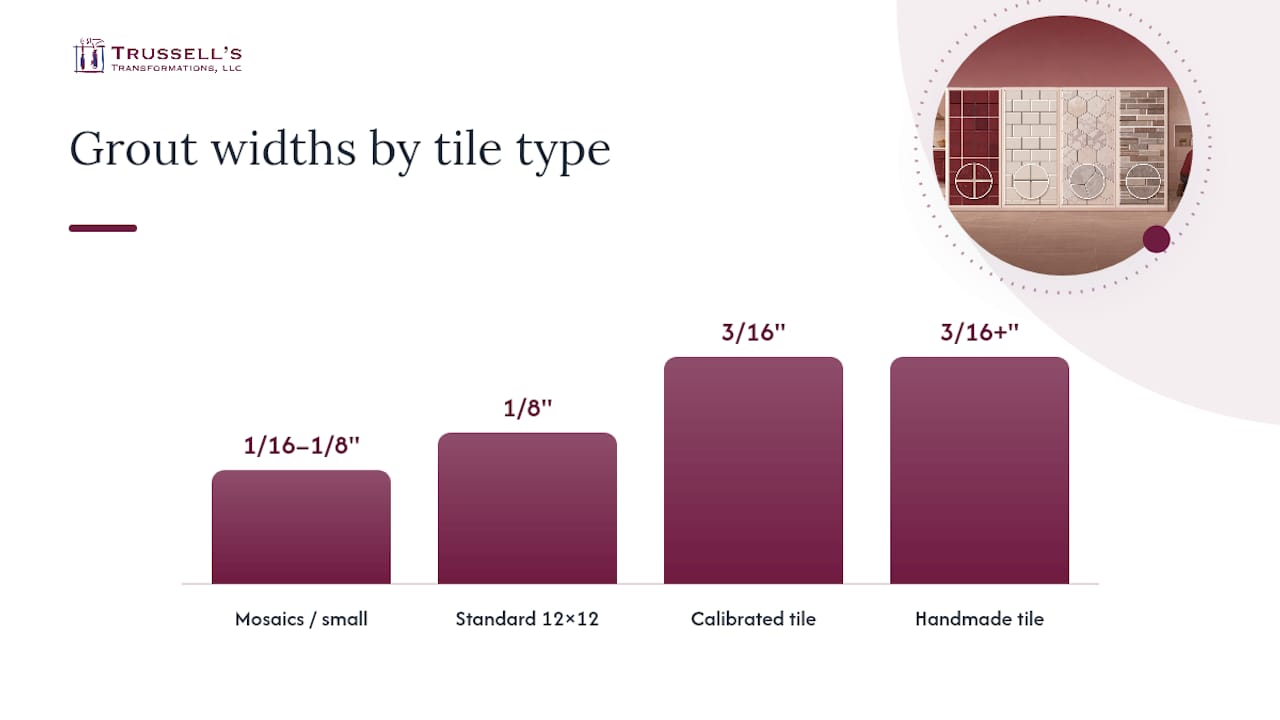

Grout Width Ranges by Tile Type

Here’s how the ranges break down by material, based on manufacturer guidance and common field practice.

1. Glass tile: 1/16". Glass has minimal size variation and sharp, consistent edges, so it can run the tightest joint on this list without risking chipped edges.
2. Rectified porcelain: 1/16" to 1/8". Many installers still set floor rectified porcelain at 1/8" rather than the theoretical minimum, since it allows a cushion for substrate imperfections and foot traffic.
3. Standard ceramic (non-rectified): 1/8" to 3/16". The slightly rounded cushion edge on most ceramic tile needs a bit more room to look clean.
4. Mosaics (mesh backed): 1/16" to 1/8". These usually come pre-spaced, so your main job is confirming the sheet spacing matches your wall or floor pattern.
5. Polished natural stone: 1/8". Polished stone reads similarly to rectified porcelain, tight and formal.
6. Tumbled natural stone: 3/16" to 1/4". Tumbled edges are irregular by design, and a tight joint fights the rustic look the material is chosen for in the first place.
7. Handmade tile: 3/16" or larger. Manufacturers of artisan tile intentionally recommend wider joints because the handmade character depends on visible grout, not a seamless finish.
8. Thin brick: 3/8" to 1/2". Brick-look tile is meant to mimic mortar joints from actual masonry, so the grout line becomes part of the design, not an afterthought.

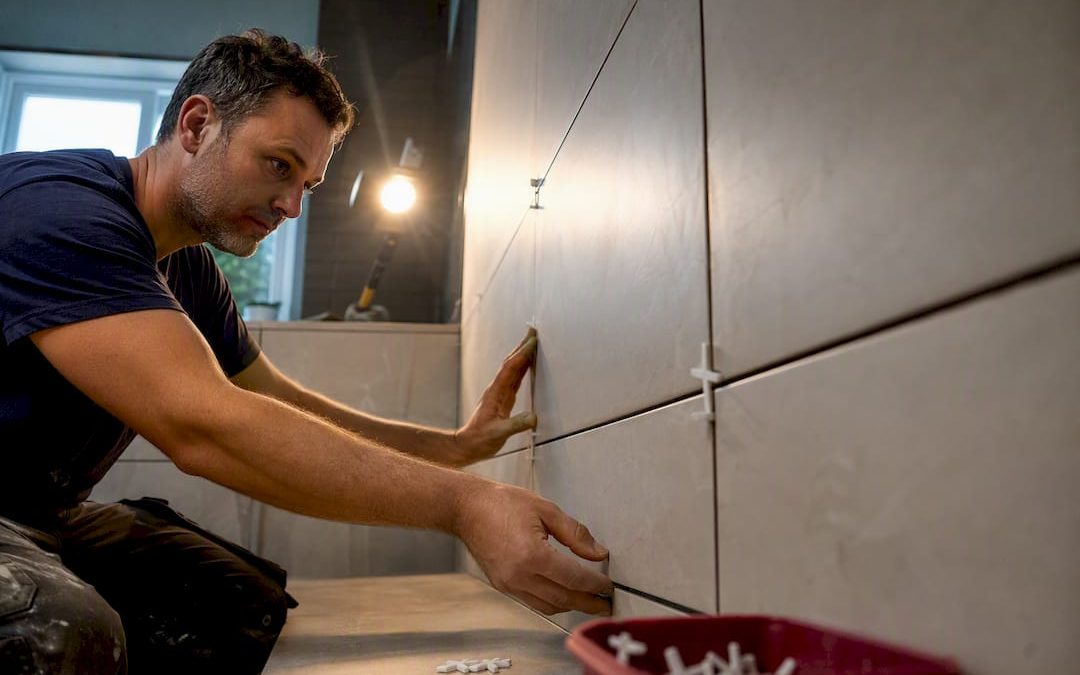

Spacer size and finished grout width aren’t always identical. A 1/8" spacer gives you roughly 1/8" of joint before grout, but slight tile bowing or installer technique can nudge the finished measurement by a hair in either direction. Always check a spacer’s actual gap against a tape measure rather than trusting the label alone.

Large-Format Tile, Patterns, and the 33% Offset Rule

Running-bond patterns, where each row shifts half the tile length from the row below, look striking on large-format tile, but they’re also where lippage problems start. The Ceramic Tile Foundation, citing ANSI A108.02, recommends capping offset at 33% rather than the traditional 50% brick-lay pattern for any tile with a side longer than 15 inches.

The math behind that limit is straightforward: a 50% offset lines up the center of one tile with the edge warp of the tiles above and below it, which is exactly where warping shows up worst. Dropping to a 33% offset shifts that alignment away from the highest-warp zone.

ANSI baselines for running-bond installs on tile over 15 inches per side:

• Rectified tile: average minimum grout joint of 1/8", plus an add-on for measured edge warpage.
• Calibrated tile: average minimum grout joint of 3/16", plus the same warpage add-on.
• Large-format tile is legally permitted up to roughly 1% warpage, which sounds small until you’re working with a 24 inch plank and that 1% becomes a real, visible gap.

If a pattern you love exceeds the 33% guidance, don’t skip the conversation with your installer. Request a grouted mock-up and get written sign off before the full run goes down. A few square feet of test tile costs far less than tearing out a finished floor.

Choosing Grout Type to Match Your Joint Width

Joint width and grout material are a package deal, not two separate decisions.

• Unsanded grout works for joints smaller than 1/8", and it’s the right call for glass, polished stone, or any delicate finish an aggregate could scratch. Its downside: unsanded grout shrinks more in wider joints, leading to cracking over time.
• Sanded grout is built for joints 1/8" and larger, especially on floors. The sand aggregate resists shrinkage and holds up under foot traffic far better than unsanded grout would at the same width.
• Epoxy grout covers a broader range of joint widths and delivers real stain resistance, which makes it worth the added cost in kitchens, showers, and other wet areas. If you’re still deciding between epoxy and standard cement grout for a shower rebuild, our breakdown of epoxy versus cement grout walks through the performance differences in more detail.

Wider joints generally need more sealing over their lifespan, particularly with cementitious grout in bathrooms. Narrower joints resist staining better simply because there’s less surface area for dirt to grab onto.

Pro Tip: Order enough extra grout to build a test mock-up in the actual color you’re considering. Grout color changes how noticeable a joint width reads on the wall, and light grout on a wide joint can look busier than the same width in a color matched close to the tile.

How to Calculate Your Minimum Grout Joint

You don’t need a contractor’s license to run this calculation yourself, just a tape measure, a flat surface, and 20 minutes with your tile order.

1. Pull 20 tiles from the batch you’re actually installing, not the display sample from the showroom.
2. Measure the facial dimension of each tile along the same edge, then record the largest and smallest measurements you find.
3. Subtract the smallest from the largest to get your total facial variation. If your tiles range from 11 15/16" to 12 1/16", that’s a 1/8" variation.
4. Multiply that variation by three. ANSI A108.02 sets the minimum grout joint at three times the batch’s facial variation, so a 1/8" variation demands at least a 3/8" joint, well beyond the standard 1/8" most homeowners picture.
5. Check the result against the absolute floor of 1/16" and against any running-bond baseline that applies (1/8" rectified, 3/16" calibrated) if you’re using an offset pattern.
6. Measure warpage separately using a straightedge laid across the tile’s longest side and a feeler gauge or thin ruler to check the gap underneath. Add that measured warpage to your baseline for the true minimum.
7. Build a grouted mock-up with your final spacer choice before tiling the whole room.

That 3× variation formula is the single most-overlooked step in DIY tile projects. Homeowners often assume 1/8" is a universal safe default, but a batch with unusually high facial variation can legitimately require double or triple that width to meet the ANSI standard and avoid an uneven, wavy grout line running through the whole floor.

Installer Lessons: Mistakes That Cost Homeowners Money

We’ve walked into more than a few tear-out jobs where the grout width was never the real problem. The tile selection process was.

The most common mistake: a homeowner insists on the tightest possible joint for a sleek, minimal look without ever measuring the tile batch’s variation. When the tile has more warp than expected, that tight joint either won’t lay flat or shows visible lippage across the whole room within a year.

Other recurring issues we see on remodel walkthroughs:

• Ignoring an uneven substrate and expecting grout width alone to hide it.
• Choosing sanded grout for a delicate glass tile joint, which can scratch the surface during installation.
• Picking grout color before seeing it in a mock-up, then regretting how much (or how little) it stands out against the tile.

Simple, complex-free rectified porcelain in a straight-lay pattern is a reasonable DIY project for a confident homeowner. Handmade tile, large-format offset patterns, or anything crossing the 33% offset guidance is worth handing to a professional, since the margin for costly error grows fast once warpage and pattern interact.

Before you order tile or hire an installer, hand over this short checklist: confirm the batch’s facial variation, confirm your spacer size against the ANSI minimum for your pattern, request a grouted mock-up, and lock in grout color only after seeing that mock-up in your actual lighting.

Pro Tip: If a showroom sample looks flawless but your delivered batch feels rougher around the edges, trust the batch measurement over the showroom sample every time. Display tiles are often hand-selected for consistency and rarely represent what actually ships.

Quick Reference: Grout Width by Tile Type

Treat these ranges as a starting point. Your exact minimum still comes from measuring your own tile batch’s facial variation, not from a chart alone.

When Designers Push for Tight Joints and When We Push Back

Minimal grout lines look stunning in photos, and on a perfectly rectified porcelain batch with a flat substrate, a 1/16" joint can absolutely work. But we’ve seen that same width fail on a batch with more warp than the spec sheet promised, forcing a costly redo. A grouted mock-up before you commit tells you which situation you’re actually in.

— Christy Trussell

Get a Mock-Up Before You Commit to a Grout Width

Guessing at grout width from a chart is how homeowners end up redoing a floor six months after move-in. A grouted mock-up using your actual tile batch before installation starts lets you see the real joint width, the real grout color, and the real pattern lippage risk before a single tile is set permanently.

It’s important to measure facial variation, check substrate flatness, and recommend the right grout type for your room, whether that’s a kitchen backsplash, a heated bathroom floor, or a full shower rebuild. If your project includes wet-area tile, our guide to bathroom remodeling steps covers waterproofing and layout decisions that affect grout choice long before grout ever gets mixed. Request a quote and mock-up consultation today, and get your grout width right the first time instead of the second.
