Kitchen Cabinet Heights: Standard Sizes and Install Guide

Standard base cabinets use a 34.5" box, which becomes about 36" finished once a countertop goes on top. Wall cabinets commonly come in 30", 36", or 42" heights, mounted with roughly 18" of clearance above the counter. Tall or pantry cabinets typically run heights that accommodate standard ceiling heights, including options around 84 to 96 inches. These numbers are the backbone of almost every kitchen layout Trussell’s Transformations builds in Albuquerque, but ceiling height, appliance clearances, and accessibility needs can all justify adjusting them.

• Base cabinet box: 34.5" (finished height around 35–36" with countertop)
• Wall cabinets: 30", 36", or 42", set about 18" above the counter
• Tall/pantry cabinets: 84", 90", or 96"
• Finished counter height: roughly 36" is the industry default

Quick fact: A standard base cabinet box measures 34.5 inches, and adding a typical 1.5" countertop brings the finished height to about 36 inches.

Key Takeaways

Standard kitchen cabinet heights (34.5" base boxes, 36" finished counters, 30–42" wall cabinets, and 84–96" tall cabinets) work for most kitchens, but floor variance, appliances, and ergonomics often require small adjustments.

Resources for Verifying Cabinet Dimensions

The National Kitchen & Bath Association sets industry design guidance, while The Spruce and BobVila detail standard sizing. See our remodeling services page for local project support.

Table of Contents

• Standard Kitchen Cabinet Heights for Base Cabinets
• What Height Should Wall Cabinets Be Mounted At?
• How Tall Should Pantry Cabinets Be?
• Clearances and Appliance Rules You Can’t Skip
• Standard Cabinet Depths and Widths to Plan Around
• When Should You Choose Custom Cabinet Heights Instead?
• Kitchen Cabinet Dimensions at a Glance
• Where Should Cabinet Hardware Sit on the Door?
• Why Ergonomics Matter More Than Code Minimums
• How Do You Measure and Account for Toe Kicks?
• Installing Cabinets Above Appliances and Sinks
• Customizing Cabinet Heights for Irregular Layouts
• Sources

Standard Kitchen Cabinet Heights for Base Cabinets

The 34.5" box height isn’t arbitrary. It’s the result of decades of kitchen design settling on a height that works for most adults standing at a counter without hunching or reaching up. Add a standard countertop, usually 1.5" thick, and you land at the familiar 36" finished height you’ll see in most American kitchens.

That 36" mark isn’t just tradition. It shapes how dishwashers, ranges, and built-in microwaves get designed, since appliance manufacturers build to that same baseline. Change your finished counter height and you may narrow your appliance options.

Small variables shift the finished number more than people expect:

• Underlayment or plywood added beneath a stone countertop can add a fraction of an inch
• Countertop material thickness varies (quartz slabs run thinner than some granite edge details)
• Adjustable cabinet legs let installers fine-tune height without rebuilding the box
• Lowering counters to 30–34" is common for wheelchair accessibility, but it usually requires shorter appliances or under-counter models

If you’re deciding between countertop materials, it’s worth reading how countertop choice affects finished height before you lock in cabinet orders, since some stone and butcher block options add more thickness than you’d assume.

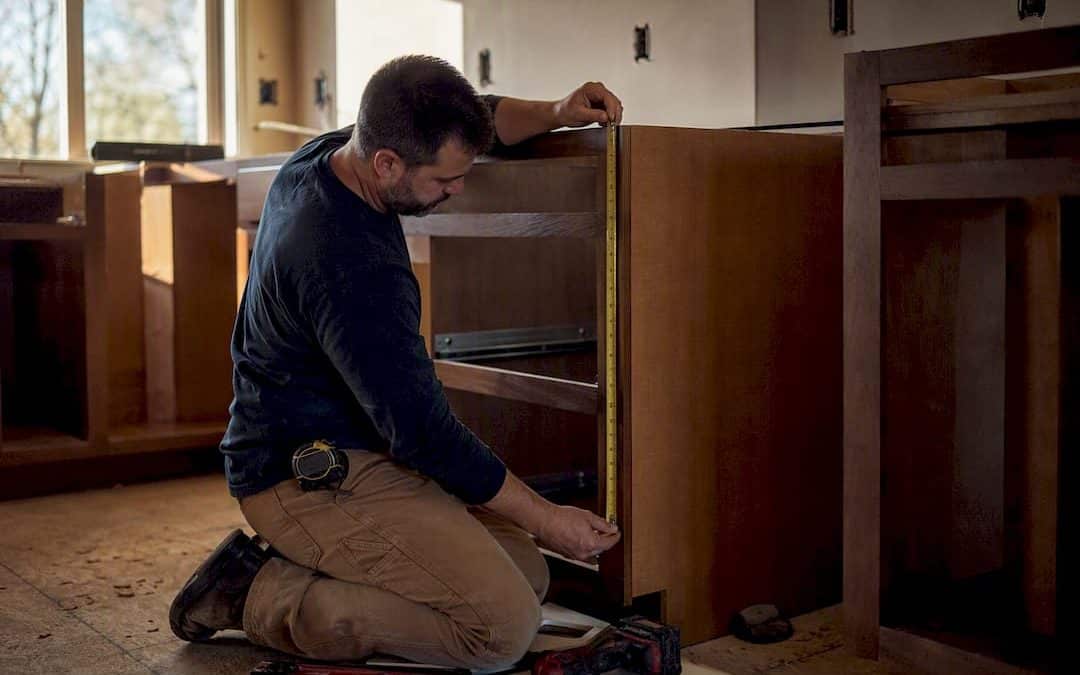

Pro Tip: Never measure cabinet height from an assumed flat floor. Find the highest point in the room first, because that’s where your base row needs to start to stay level across the whole kitchen.

What Height Should Wall Cabinets Be Mounted At?

Wall cabinets are sold in a handful of standard heights, and the right one depends on your ceiling, your reach, and how much storage you actually need. The most common sizes are 12, 15, 18, 24, 30, 36, and 42 inches, each suited to a different spot in the kitchen.

• 12"–15": narrow spaces above a range hood or window
• 18": the classic size above counters with a backsplash below
• 24": above refrigerators or in transitional spaces
• 30"–36": the workhorse heights for most upper cabinet runs
• 42": floor-to-ceiling storage in kitchens with 9-foot or taller ceilings

The mounting math matters as much as the cabinet size itself. Standard practice sets the bottom of the wall cabinet about 18 inches above the countertop, which puts it around 54" from the finished floor with a 36" counter. From there, the top of the cabinet follows a simple pattern: a 30" cabinet tops out near 84", a 36" cabinet near 90", and a 42" cabinet near 96", which lines up with a standard 8-foot ceiling.

Going with 42" cabinets eliminates the dust-collecting gap above the cabinets and maximizes storage, but in a smaller kitchen it can make the room feel closed in, especially without much natural light. Homeowners weighing that trade-off should also think about crown molding or soffits, which can visually finish a shorter cabinet run without adding real storage. Shallower or deeper wall cabinets have their place too. A 12" depth works well over a sink run, while a 24" depth is standard above the refrigerator, where you need the extra reach to match the appliance’s footprint.

How Tall Should Pantry Cabinets Be?

Tall cabinets solve the storage problem that base and wall cabinets can’t. Standard heights run 84", 90", or 96", and matching the cabinet to your ceiling matters more here than almost anywhere else in the kitchen. An 84" or 90" cabinet works well under an 8-foot ceiling with room for crown detail, while a full 96" tall cabinet reaches an 8-foot ceiling with no gap at all.

Depth and width decide how the cabinet actually functions inside:

• 12" deep: ideal for pantry shelving, spice storage, and canned goods
• 24" deep: better for small appliances, trays, or utility storage
• 12"/24"/36" wide: the common width range, with 24" and 36" the most popular for full pantry function

If your kitchen doesn’t have a clean spot for a built-in tall cabinet, stacking upper wall cabinets or adding a freestanding pantry piece can fill the same need without a structural change.

Clearances and Appliance Rules You Can’t Skip

Cabinet height only works on paper until an appliance gets in the way. A few clearance rules keep the layout functional once everything is installed.

1. Counter to wall cabinet: roughly 18" of clearance is standard, giving enough room for small appliances and comfortable visibility while working at the counter.
2. Range hood or microwave above cooking surface: minimums vary by appliance, so always check the manufacturer’s installation instructions rather than assuming a standard number applies.
3. Cabinet above the refrigerator: typically 12" to 24" tall and often 24" deep to match the fridge’s depth, but confirm your specific fridge model since trim kits and door swing can eat into that space.

Pro Tip: Order appliances before finalizing cabinet layout whenever possible. Hood, microwave, and refrigerator trim kits all have their own clearance quirks, and coordinating them after cabinets are installed is one of the most common (and costly) sources of rework.

Standard Cabinet Depths and Widths to Plan Around

Stock cabinet dimensions follow predictable patterns, which makes planning a layout far easier once you know the ranges.

• Base cabinet depth: 24 inches standard, with a finished depth of 25–26" once the countertop overhang is added
• Wall cabinet depth: 12" typical, though 15–24" variants exist for specialty uses
• Common widths: 12, 15, 18, 24, 30, 36, and 48 inches, sold in regular increments to simplify layout planning

Manufacturers label cabinets with nominal sizes, but a “24-inch” cabinet from one product line isn’t always exactly 24.0 inches. Field measurements matter more than the catalog number, especially when you’re piecing together runs from different cabinet lines or planning tight corner layouts. If you’re browsing interior organization options for those cabinets once they’re sized, our guide to built-in cabinet accessories covers what fits inside standard depths.

When Should You Choose Custom Cabinet Heights Instead?

Stock sizes cover most kitchens, but not every household fits the average. A few situations make custom or semi-custom heights worth the added cost.

• Accessibility needs: lowering counters to 30–34" for wheelchair users often means switching to under-counter appliances or shorter dishwasher models to keep everything compatible
• Taller users or dedicated tasks: a 37–38" counter height suits taller cooks or works well as a baking station, since it reduces the back strain of rolling dough at a standard 36" height
• Mixed heights within one kitchen: islands can run taller or shorter than the perimeter counters without looking mismatched, as long as the transition is intentional rather than accidental

Custom heights cost more than stock cabinetry, but for a kitchen that gets heavy daily use, the ergonomic payoff is often worth the budget trade-off. Anyone weighing that decision should look at the range of custom cabinet design options available before assuming stock is the only affordable path.

Pro Tip: Raising a countertop by even 1 to 2 inches, using plywood underlayment or adjustable legs, can resolve fit problems for taller cooks without a full custom cabinet order.

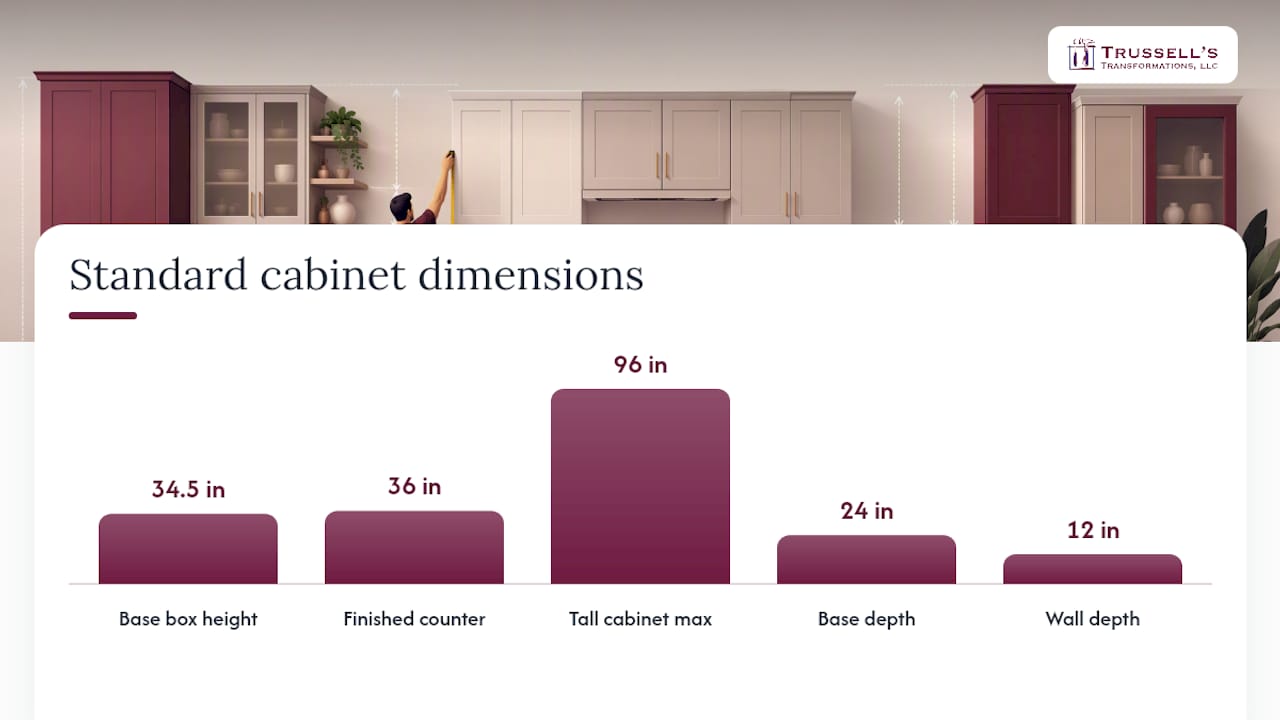

Kitchen Cabinet Dimensions at a Glance

Where Should Cabinet Hardware Sit on the Door?

Hardware placement depends on cabinet type, and getting it wrong is one of the most visible mistakes in an otherwise well-planned kitchen. On base cabinets, handles typically sit near the top corner of the door, roughly 2.5" to 3" down from the top edge, so they’re within easy reach without stooping. Knobs on base cabinet drawers usually center on the drawer face, either vertically centered on narrow drawers or placed a few inches from the top edge on deeper ones.

Wall cabinets flip that logic. Since you’re reaching up rather than down, handles go near the bottom corner of the door, about 2.5" to 3" up from the bottom edge. That keeps the hardware within a natural arm’s reach whether you’re standing at the counter or grabbing something quickly while cooking.

Tall or pantry cabinets need a different approach entirely, since a single handle placed at either extreme end would be awkward to use across a door that might run 84" or more. Many homeowners split the difference by mounting handles at a comfortable mid-height, often around counter height or slightly above, so the reach feels natural whether reaching up or down the door.

Consistency across the kitchen matters more than any single measurement. Once you pick a placement rule for base and wall cabinets, template it with a jig or a story stick and repeat it on every door and drawer. A kitchen with even a quarter-inch of hardware inconsistency across runs reads as unfinished no matter how good the cabinets themselves look.

Why Ergonomics Matter More Than Code Minimums

ADA guidelines set the legal floor for accessible kitchens, but they don’t account for the daily wear and tear of actually cooking. A kitchen can meet every accessibility code and still cause shoulder strain, back pain, or wasted motion if the heights don’t match how the household actually cooks.

Think about how differently a 5’2" cook and a 6’2" cook experience the same 36" counter. The taller cook bends slightly at a standard counter for extended prep work, which adds up over years of daily use. The shorter cook may reach uncomfortably for a 42" wall cabinet that a taller household member finds perfectly convenient. Neither situation violates any code, but both create real physical strain.

Ergonomic planning looks past the ADA minimum toward the actual humans using the space. That might mean a lower prep section built into an island for a household member who does most of the baking, or wall cabinets set a few inches lower than standard in a kitchen used primarily by a shorter cook. It might mean pulling drawers instead of lower cabinet doors, since drawers eliminate the bending and reaching that lower cabinets require entirely.

None of this shows up in a code inspection, but it shows up in how a kitchen feels to use every single day. A well-planned kitchen accounts for the household’s actual bodies and habits, not just the legal minimum for access. That distinction is exactly why a design consultation matters more than simply ordering stock cabinets at default heights and hoping they work.

How Do You Measure and Account for Toe Kicks?

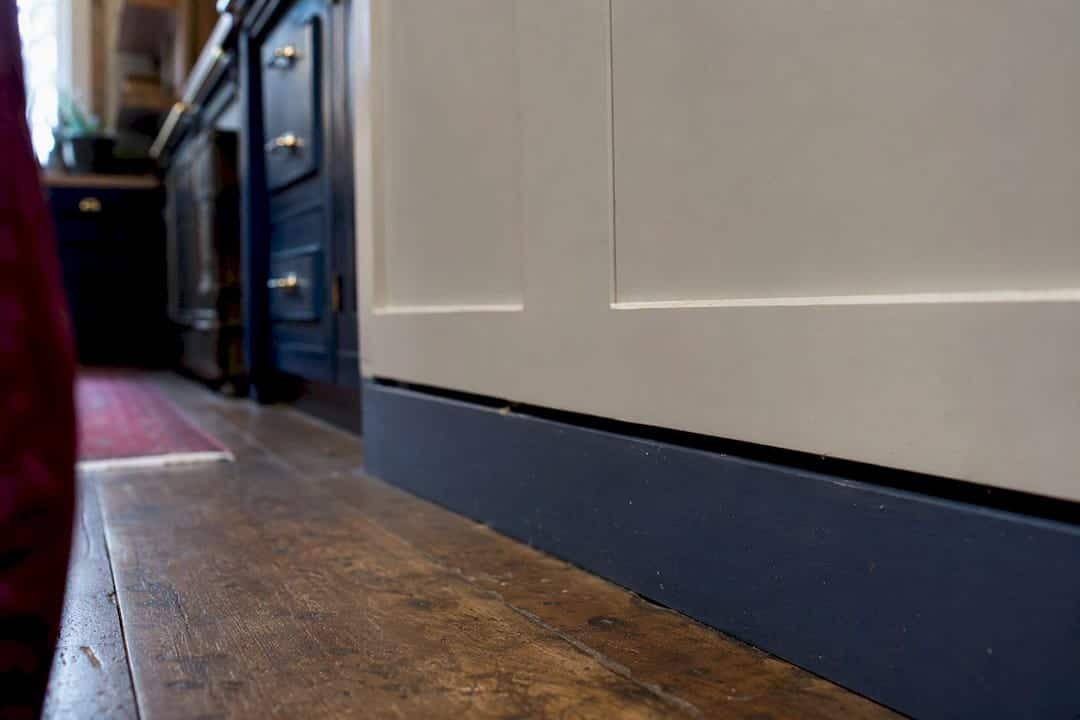

The toe kick is the recessed space at the base of a cabinet that lets you stand close to the counter without stubbing your toes on the cabinet face. Standard toe kicks run about 4" tall and 3" deep, and that recess is part of what makes the total base cabinet height work out to a comfortable standing position.

Measuring for a toe kick starts the same way as measuring for the rest of the base row: find the highest point of the floor first. The toe kick height needs to stay consistent across the whole run, which means the cabinet boxes themselves may need shims or leveling adjustments at the back or sides to compensate for an uneven subfloor. If you skip this step and build off the lowest point instead, you’ll end up with a toe kick that’s too shallow on one end of the run and gaps or unevenness on the other.

Flooring type affects the calculation too. If you’re installing new flooring before cabinets go in, factor the flooring thickness into your toe kick height from the start, since tile or thick engineered wood can eat into that 4" recess if it’s not planned for ahead of time. Some homeowners running new hardwood or tile prefer to set cabinets after flooring is complete specifically to avoid this miscalculation.

Toe kicks also take a beating over the life of a kitchen, since they get kicked, mopped against, and scuffed constantly. Many installers recommend a slightly recessed, dark-toned toe kick material specifically because it hides wear better than a finish that matches the cabinet face exactly.

Installing Cabinets Above Appliances and Sinks

Cabinets above a sink follow the same 18" clearance rule as any other wall cabinet, but the window situation above most kitchen sinks often eliminates the wall cabinet entirely in that specific spot. If there’s no window, a standard wall cabinet works fine above a sink, though many homeowners choose a shallower depth there since deep cabinets can feel like they’re closing in over the workspace.

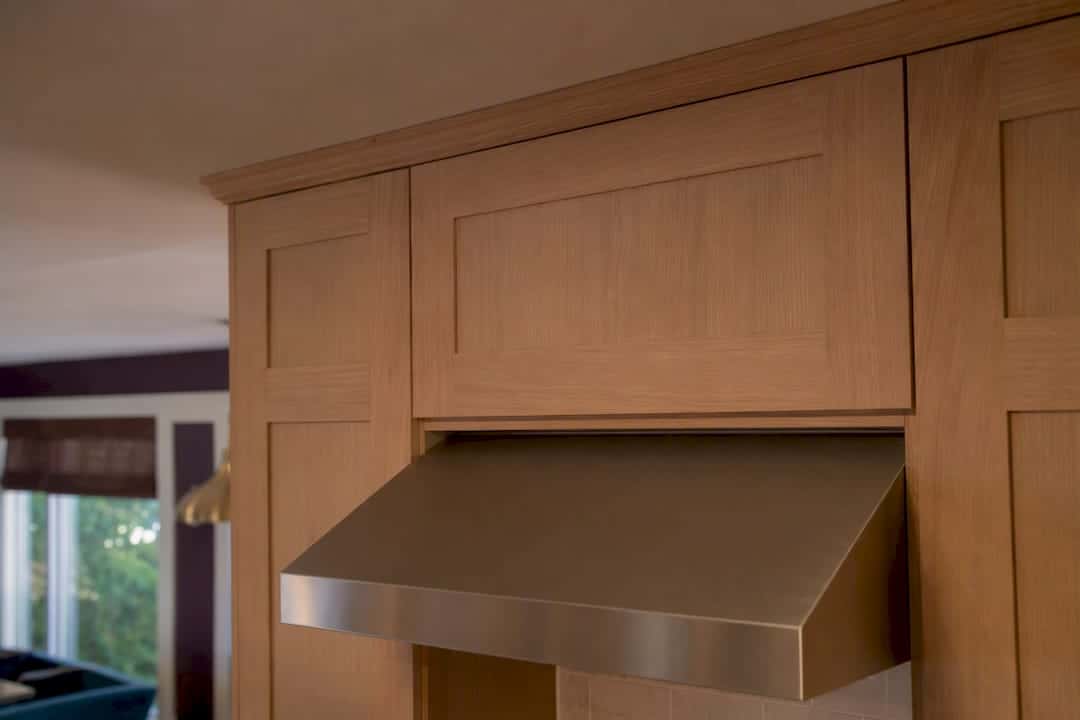

Above a range or cooktop, the rules change substantially because heat and grease enter the equation. A range hood or microwave hood combo has its own manufacturer-specified clearance from the cooking surface, and that number varies by unit, so checking the actual installation instructions matters more than assuming a standard measurement applies. Skipping this step is one of the most common causes of failed final inspections on kitchen remodels.

Cabinets flanking a range hood, rather than directly above it, usually match the height of the hood’s top edge so the run reads as one continuous line rather than a mismatched jump. This is a detail that separates a professionally finished kitchen from a DIY job that technically works but looks unplanned.

Above the refrigerator, the cabinet needs to clear the appliance’s actual height, including any trim kit, not just the box dimension listed on the spec sheet. Refrigerator trim kits and door swing clearance can add several inches beyond what the base appliance measurement suggests, so measuring the installed fridge, not the box it came in, prevents an expensive surprise during final cabinet installation.

Customizing Cabinet Heights for Irregular Layouts

Not every kitchen has flat walls, square corners, and a consistent ceiling height, and older homes in particular tend to throw curveballs at standard cabinet planning. Sloped ceilings, bulkheads, and out-of-square walls all require adjusting the standard height math rather than abandoning it entirely.

A sloped ceiling above part of a cabinet run doesn’t mean giving up on tall cabinets in that section. Many installers step the cabinet heights down to follow the slope, using a shorter cabinet where the ceiling drops and returning to standard height once the ceiling levels out. It’s more work than a straight run, but it uses the available space instead of leaving it empty.

Bulkheads, those boxed-in sections that hide ductwork or plumbing, often force wall cabinets shorter than the standard 30" or 36" in that specific section. Rather than fighting the bulkhead, many homeowners build it into the design intentionally, using a shorter cabinet there and adding crown detail or trim that makes the transition look planned rather than forced.

Out-of-square walls and uneven floors are the most common irregularity, and they’re exactly why measuring the highest floor point and confirming wall squareness before ordering cabinets matters so much. A kitchen that’s a half-inch out of square across a 10-foot run needs scribe strips or filler panels to close the gap cleanly, and planning for that filler in advance avoids a rushed, visible patch job during installation. Homeowners tackling an irregular layout on their own are usually better served consulting on cabinet height planning early, before cabinets are ordered, rather than trying to fix a mismatch after the fact.

Practitioner Notes From the Job Site

Every project starts the same way: measure the highest point of the floor before setting a single cabinet. Even a level-looking kitchen floor commonly varies by 1/8" to 1/4" across a run, and shims close that gap without throwing off the finished line.

Appliance coordination causes more delays than almost anything else. Hood, microwave, and refrigerator trim kits each have clearance quirks that only show up once you’re holding the actual unit. DIY works fine for straightforward runs, but irregular layouts and appliance-heavy walls are where professional installation earns its cost by avoiding rework.
