Radiant Floor Heating Under Tile: A Homeowner’s Guide

Yes, you can absolutely install radiant floor heating under tile, and tile is actually one of the best flooring surfaces for it. For most single-room retrofits like a bathroom or kitchen, an electric heating mat is the practical choice: lower upfront cost, minimal disruption, and no mechanical plant required. Hydronic systems, which circulate hot water through PEX tubing, make more sense for large-area or whole-house heating where the higher installation cost pays back over time through lower operating expenses. A few honest caveats upfront: installed costs range from roughly $8 to $20 per square foot for electric mat systems and $14 to $40 per square foot for hydronic systems, depending on project scope, warm-up times vary with floor mass, and if a cable ever fails beneath a fully tiled floor, repair access is genuinely difficult.

• Electric mats or cables: Best for single rooms, retrofits, and budgets under $2,000 for materials
• Hydronic tubing: Best for new construction, large open-plan areas, or whole-house heating projects
• Key caveats: Budget for permits and a licensed electrician; never power the system before tile adhesives fully cure

Table of Contents

• How does radiant floor heating under tile actually work?
• What tile, grout, and subfloor materials work best with radiant heat?
• Electric vs hydronic systems: which one is right for your project?
• How to install radiant heat under tile: steps and timeline
• What does radiant floor heating under tile actually cost?
• What are the real pros and cons of heated tile floors?
• Which parts of this project can you DIY?
• How do you maintain a radiant tile floor, and how long does it last?
• Permits, electrical codes, and safety rules you need to know
• How Trussell’s Transformations handles radiant tile projects in Albuquerque
• Key Takeaways
• What remodelers actually watch for on radiant tile projects
• Trussell’s Transformations: local radiant tile remodels in Albuquerque
• Useful sources and further reading

How does radiant floor heating under tile actually work?

Radiant heating warms surfaces and objects directly rather than pushing heated air around the room. That distinction matters for comfort: your feet feel warm because the floor itself is warm, not because a vent is blowing hot air at ankle level. The result is even, consistent warmth without the drafts, dust circulation, or temperature stratification common with forced-air systems. Published industry guides estimate that radiant systems can operate more efficiently than forced-air in comparable conditions, largely because occupants feel comfortable at lower air thermostat setpoints.

The system has four main components working together: the heat element (electric cable or mat, or hydronic PEX tubing), a thermostat with a floor sensor, the tile assembly itself (thinset, tile, grout), and an insulation or underlayment layer beneath the element. The thermostat reads floor temperature through a sensor embedded in the thinset and cycles the system on and off to maintain your target setting. Most modern thermostats also offer programmable schedules, so the floor is warm when you step out of bed and off when the house is empty.

Statistic: Radiant floor heating can operate 25–40% more efficiently than forced-air in some scenarios, primarily because it reduces air stratification and lets occupants feel comfortable at lower ambient air temperatures.

Tile performs exceptionally well in this application because of its thermal conductivity and dimensional stability. Porcelain, ceramic, and natural stone conduct heat efficiently, transfer it evenly across the surface, and hold up under the repeated heating and cooling cycles that would cause softer or more flexible flooring materials to warp or delaminate. For moisture-heavy rooms like bathrooms and kitchens, tile’s resistance to water also makes it the natural pairing.

Pro Tip: Electric systems require GFCI (ground fault circuit interrupter) protection on the dedicated circuit. If your bathroom or kitchen panel circuit does not already have GFCI protection, budget for that upgrade when you plan the project.

What tile, grout, and subfloor materials work best with radiant heat?

Choosing the right materials from the start prevents the most common long-term failures: cracked grout, delaminated tiles, and heat loss downward instead of upward.

Tile selection

Porcelain and ceramic tile are the top choices for heated floors. Porcelain is denser and more dimensionally stable under thermal cycling, making it the preferred option for larger format tiles. Ceramic is slightly more porous but performs well in smaller formats and is often more budget-friendly. Natural stone, including slate, travertine, and marble, conducts heat beautifully but requires sealing and careful adhesive selection because it is more sensitive to movement. Avoid vinyl plank, laminate, and engineered wood over radiant heat unless the manufacturer explicitly rates the product for that use.

Subfloor considerations

• Concrete slab: The ideal substrate. Dense, stable, and excellent at storing and radiating heat. Electric mats or hydronic tubing embed directly in a thinset bed or lightweight concrete topping.
• Cement backer board (CBU) over wood framing: A common retrofit solution. The CBU provides a stable, non-combustible surface, but the wood framing beneath it is more susceptible to moisture and movement. Insulation beneath the heating element is especially important here to prevent heat loss into the floor cavity.
• Wood subfloor without CBU: Not recommended without an uncoupling membrane or CBU layer. Wood moves with humidity changes, and that movement transfers stress to the tile assembly.

Adhesives, grouts, and underlayments

Use a polymer-modified, heat-rated thinset for all radiant tile installations. Standard thinset can become brittle under repeated thermal cycling. For grout, select a product rated for thermal movement, and keep grout joints at least 1/8 inch wide to accommodate minor expansion. Uncoupling membranes and insulating boards placed beneath the heating element serve two purposes: they reduce downward heat loss (improving warm-up time and efficiency) and they absorb the minor movement stresses that would otherwise crack grout lines or pop tiles over time.

Pro Tip: Never install radiant heating elements beneath fixed cabinetry, kitchen islands, or zero-clearance fixtures. Heat trapped under stationary objects can damage adhesives and create hot spots that stress the tile assembly.

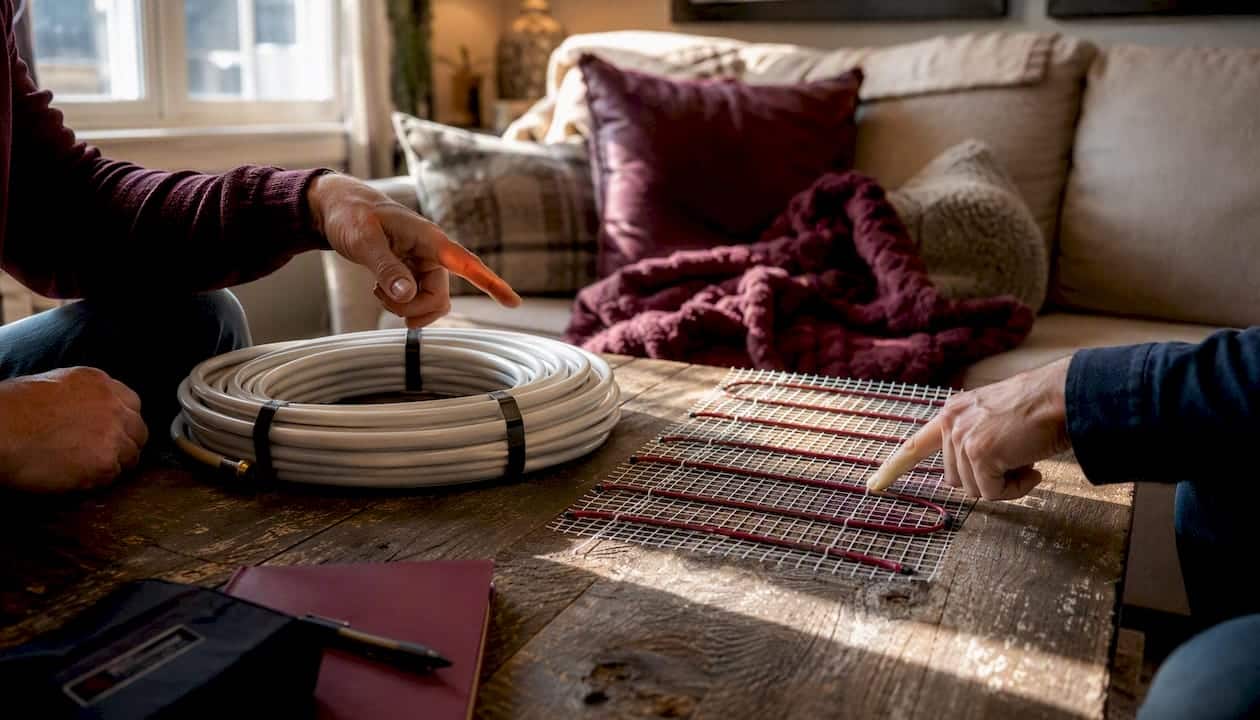

Electric vs hydronic systems: which one is right for your project?

Electric systems account for over 70% of residential radiant installations in the U.S., and for good reason: they are thinner, easier to retrofit, and require no mechanical plant. Hydronic systems circulate heated water through PEX tubing and connect to a boiler or heat pump, which makes them more complex to install but significantly cheaper to operate at scale.

The decision threshold is fairly clear in practice. Under roughly 400 square feet, electric is the pragmatic retrofit choice; over roughly 800 square feet, hydronic usually pays off as a primary or supplemental heat source. Between those two numbers, your local electricity rate and how long you plan to own the home drive the decision. Where electricity prices exceed about $0.15/kWh, the operating cost advantage of hydronic becomes meaningful on larger installations.

Practical examples: A 60-square-foot master bathroom is a clear electric mat project. A 300-square-foot open-plan kitchen with an adjacent dining area sits in the gray zone where a detailed energy cost comparison is worth doing. A 2,500-square-foot new construction home with a concrete slab is a strong hydronic candidate, especially if a high-efficiency boiler or heat pump is already in the plan.

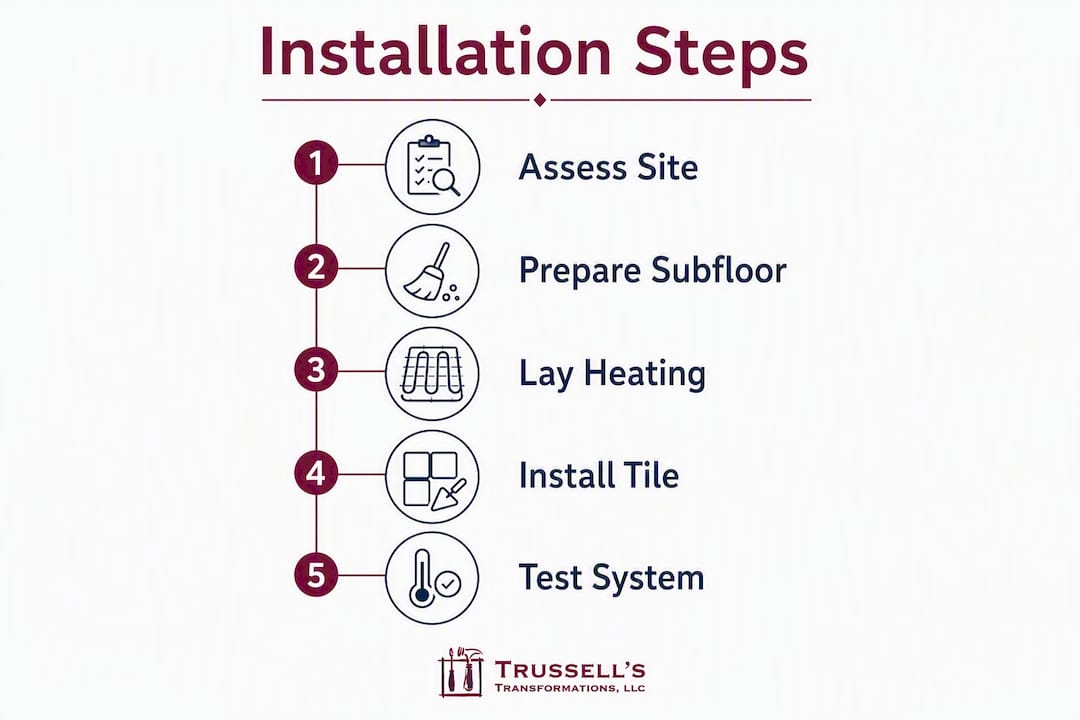

How to install radiant heat under tile: steps and timeline

A well-sequenced installation prevents the most common and costly mistakes. Here is how a typical electric mat project runs, followed by the key differences for hydronic.

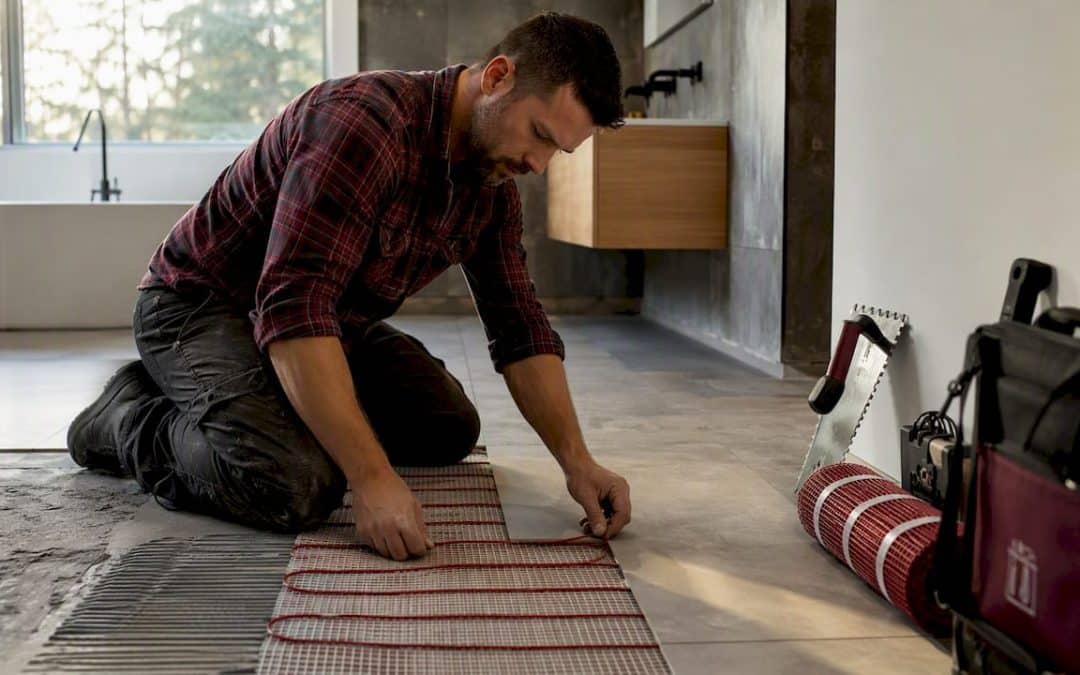

Electric mat installation

1. Substrate assessment and prep: Confirm the subfloor is flat (within 3/16 inch over 10 feet), structurally sound, and clean. Install CBU or an uncoupling membrane if the subfloor is wood. Pull the electrical permit before any work begins.
2. Layout planning: Map the mat or cable layout on paper first, keeping elements at least 2 inches from walls, fixtures, and cabinetry. Never overlap cables.
3. Pre-installation resistance check: Measure and record the cable’s ohm reading with a multimeter before unrolling. This baseline reading is your warranty documentation.
4. Mat or cable placement: Secure the mat or cable to the substrate using the manufacturer’s tape or staples. Connect the cold lead to the thermostat conduit location.
5. Sensor placement: Embed the floor sensor in a conduit between two cable runs, not touching either one. Placing the sensor midway between runs in the cold zone gives the thermostat an accurate floor temperature reading and prevents false cycling.
6. Second resistance check: Measure ohms again after placement. Any significant change from the baseline indicates damage that must be resolved before tiling.
7. Thinset embed and tile: Apply polymer-modified thinset over the mat, working carefully to avoid cutting or displacing cables. Set tile using normal technique. Grout after the thinset cures.
8. Third resistance check: Measure once more after tiling. Keep all three readings on file.
9. Cure period: Wait the full 2–4 weeks the manufacturer and tile authority recommend before energizing the system. Powering up early is the single most preventable cause of tile delamination.
10. Commissioning: Set the thermostat to a low temperature first and gradually increase over several days.

Hydronic installation differences

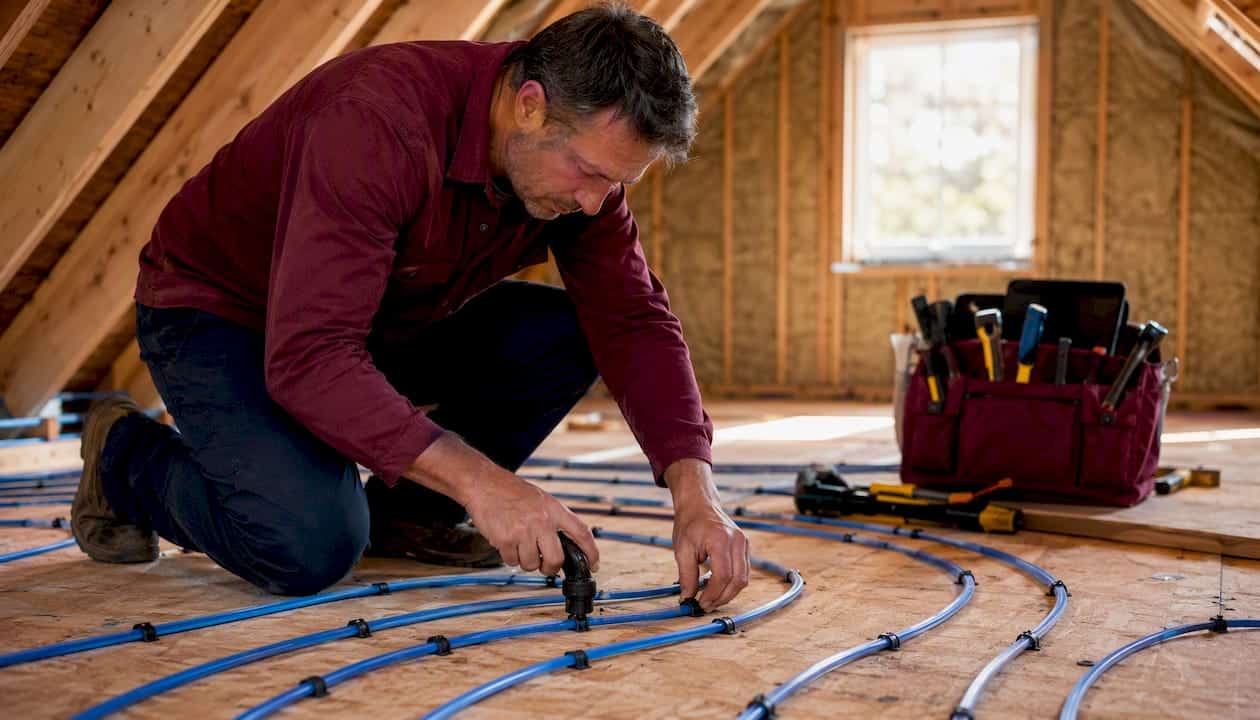

Hydronic projects add a tubing layout phase (stapled to insulation board or embedded in a concrete topping), a manifold and heat-source tie-in by a licensed plumber, and a pressure test of the tubing before any concrete or thinset is placed. Keep the pressure test documentation for warranty and resale purposes.

Typical timeline: Substrate prep takes one to two days. Electric mat placement and tiling run two to four days for a standard bathroom. The cure period adds two to four weeks before commissioning. Hydronic projects on a slab add a week or more for tubing, topping, and cure. Budget the full timeline before scheduling finish trades.

Pro Tip: Take photos of the cable or tubing layout before covering it with thinset or concrete. If a repair is ever needed years later, those photos tell a contractor exactly where the elements run and where to avoid drilling.

What does radiant floor heating under tile actually cost?

Installed costs vary considerably based on system type, room size, subfloor condition, and local labor rates. The ranges below reflect typical U.S. residential projects.

Cost note: A 100-square-foot bathroom with an electric mat system, new CBU, polymer-modified thinset, and a programmable thermostat typically lands in the $1,500–$3,500 range fully installed, including labor. Hydronic for a 1,500-square-foot main floor in new construction can run $25,000–$60,000 when the boiler and all mechanical work are included.

The operating cost picture depends heavily on your electricity rate and how you use the system. At $0.10/kWh, running a 150-watt-per-square-foot electric mat in a 100-square-foot bathroom for four hours a day costs roughly $2 per month. At $0.20/kWh, that doubles. Hydronic systems paired with a high-efficiency gas boiler or heat pump cost significantly less per BTU at scale, which is why the break-even math favors hydronic for larger areas and long ownership periods.

If you are weighing how to fund a larger radiant heating project, a HELOC vs personal loan comparison is worth reviewing before you commit to a scope.

What are the real pros and cons of heated tile floors?

Advantages

• Even surface warmth: No cold spots, no drafts. The entire floor surface reaches a consistent temperature, which is especially noticeable in tile-heavy bathrooms and kitchens.
• Excellent tile pairing: Tile’s thermal conductivity and stability make it the best flooring type for radiant heat, outperforming wood, vinyl, and carpet in heat transfer efficiency.
• Low visible equipment: No baseboard heaters, no floor registers, no radiators. The system is entirely hidden.
• Minimal regular maintenance: Electric elements have no moving parts. Once installed correctly, they typically require no maintenance for decades.
• Comfort and perceived value: Heated tile floors remove cold spots and offer a spa-like surface warmth that buyers notice and appreciate.

Disadvantages and risks

• Repair access: If an electric cable breaks beneath a fully tiled floor, accessing it means removing tile. This is the most significant long-term risk, which is why multimeter documentation at every installation stage matters.
• Slow warm-up for high-mass assemblies: Thick stone tile over a concrete slab takes longer to reach temperature than thin porcelain over CBU. Programmable thermostats with pre-heat schedules address this, but it requires planning.
• Initial cost: The upfront investment is higher than electric baseboard or forced-air supplemental heat for the same room.
• Correct materials are non-negotiable: Using standard thinset, incompatible grout, or skipping the uncoupling membrane increases the risk of cracked grout and delaminated tiles within a few years.
• Not always a primary heat source: Radiant under tile is best positioned as comfort warming unless the hydronic system is specifically sized and the building envelope is tight enough to rely on floor heat alone.

Where it pays off most: Bathrooms, kitchens, and basements with tile floors are the highest-value use cases. Entryways and mudrooms are strong secondary candidates. A large bedroom with carpet or a living room with hardwood is usually not worth the disruption.

Which parts of this project can you DIY?

The honest answer is: some of it, but not all of it.

Reasonable DIY tasks include planning the layout, selecting tile and underlayment, preparing the substrate in straightforward cases (cleaning, patching minor cracks), and purchasing materials. Experienced DIYers can also handle the physical mat or cable placement and the tiling itself, provided they follow the manufacturer’s installation instructions precisely and document every resistance reading.

Tasks that require licensed professionals are not optional in most U.S. jurisdictions. Connecting the heating element to a dedicated electrical circuit, installing or upgrading a GFCI-protected circuit, and making any changes to the electrical panel require a licensed electrician. Hydronic tie-ins to a boiler, heat pump, or manifold system require a licensed plumber or mechanical contractor. Structural modifications to the subfloor may require a contractor depending on your local building code.

When interviewing installers, ask these specific questions: Will you pull the permit? What are your resistance readings before, during, and after installation? Where exactly will the floor sensor be placed? What thinset product are you using and is it rated for radiant heat? Request copies of all documentation before final payment.

Pro Tip: Ask your installer for a commissioning report that includes the ohm readings at all three stages, the sensor placement location, the thermostat model and settings, and the date the system was first energized. This document is your warranty evidence and your future contractor’s roadmap.

How do you maintain a radiant tile floor, and how long does it last?

Electric heating elements are among the most durable components in a home. Most manufacturers rate their cables and mats for 20–30 years of normal use. PEX tubing in a properly installed hydronic system can last several decades; the mechanical plant (boiler or heat pump) has a shorter service life and will need replacement on its own schedule.

Routine care is straightforward:

• Clean tile and grout using normal methods. The heating system beneath has no impact on cleaning products or techniques.
• Maintain grout lines by resealing natural stone annually and regrouting cracked joints promptly to prevent moisture infiltration.
• Never drill or anchor heavy fixtures into the floor without first consulting the cable layout photos from installation.
• For hydronic systems, bleed the manifold annually and check pump operation at the start of each heating season.

Troubleshooting checklist before calling a pro:

• No heat, thermostat shows power: Check the GFCI breaker first. A tripped GFCI is the most common cause of sudden electric mat failure and takes 30 seconds to reset.
• Uneven heating: Verify the floor sensor is not touching a cable run. A sensor in contact with a wire reads artificially high and causes the thermostat to short-cycle.
• Thermostat error codes: Most modern thermostats display fault codes for open circuits (OL) or sensor failures. Consult the manual before assuming the cable is damaged.
• Hydronic zones not heating: Check manifold flow indicators, bleed air from the zone, and verify the pump is running.

When you do call a pro, bring your commissioning report with the original ohm readings. A technician can compare current readings to the baseline and quickly determine whether the element is damaged or whether the issue is in the controls.

Permits, electrical codes, and safety rules you need to know

Radiant floor heating is a permitted installation in virtually every U.S. jurisdiction. Skipping the permit is not a shortcut; it is a liability that can complicate home sales and void manufacturer warranties.

Electrical requirements: The National Electrical Code (NEC) requires GFCI protection for electric radiant heating circuits in bathrooms, kitchens, and other wet or damp locations. The system must be on a dedicated circuit sized for the load. In many jurisdictions, only a licensed electrician may make the final connection from the heating element to the panel. Your local Authority Having Jurisdiction (AHJ) sets the exact rules, so confirm requirements before work begins.

Plumbing and mechanical requirements: Hydronic systems that connect to a boiler, water heater, or heat pump typically require a mechanical permit in addition to an electrical permit. Pressure testing the tubing before it is covered is a standard inspection requirement. Keep the signed inspection report.

Safety practices that matter:

• Never energize the system before the thinset and grout have fully cured. Manufacturers and tile authorities commonly require a 2–4 week curing period before the first power-on.
• Place the floor sensor between cable runs, not touching either one, to prevent false temperature readings and thermostat damage.
• Never install heating elements beneath fixed cabinetry or zero-clearance appliances.
• Keep all permit paperwork, inspection reports, and resistance records with the home’s documentation file.

Pro Tip: When you list your home for sale, a complete radiant heating documentation file, including permits, inspection sign-offs, ohm readings, and the thermostat manual, signals to buyers and their inspectors that the work was done correctly. It can prevent a last-minute negotiation over an “unknown” system.

How Trussell’s Transformations handles radiant tile projects in Albuquerque

A recent bathroom remodel in Albuquerque illustrates how the details play out in practice. The project involved a 75-square-foot master bathroom with an existing wood subfloor and 12×24 porcelain tile. The homeowner wanted heated floors without a full structural overhaul, so the team selected an electric heating mat system paired with a cement backer board layer and an insulating underlayment to minimize downward heat loss.

Before the mat was unrolled, the resistance reading was recorded and photographed. After placement and before tiling, the reading was checked again. The floor sensor was embedded in a conduit run between two cable passes, positioned in the cold zone per National Tile Authority guidance. After tiling, a third resistance check confirmed no damage during the tile-setting process. The system sat unpowered for three weeks while the thinset and grout cured fully.

At commissioning, the thermostat was set to 68°F and stepped up gradually over five days. The homeowner reported that the floor reached a comfortable temperature within 45 minutes of the morning pre-heat schedule, and the bathroom, which had previously been the coldest room in the house, became noticeably more comfortable through the winter months.

From the project file: “The three-stage resistance documentation and the curing timeline are the two things we never skip on a radiant tile installation. They are the difference between a system that performs for 25 years and one that causes a callback in year two.”

For flooring installation in Albuquerque, Trussell’s Transformations coordinates the full sequence: substrate assessment, underlayment selection, heating element placement, tile installation, and final electrical commissioning with a licensed electrician.

Key Takeaways

Electric radiant floor heating under tile is the right choice for most single-room retrofits, while hydronic systems deliver better long-term operating costs for areas over 800 square feet or whole-house applications.

What remodelers actually watch for on radiant tile projects

The gap between a radiant tile floor that performs beautifully for 25 years and one that causes problems within two years almost always comes down to three things: the curing timeline, the sensor placement, and the documentation.

Most homeowners focus on tile selection and thermostat features, which matter, but they are not where projects go wrong. The failures we see most often trace back to a contractor who powered the system a few days after tiling instead of waiting the full cure period, or a sensor that was placed touching a cable run and caused the thermostat to short-cycle and overheat the assembly. Neither mistake is visible until the damage is done.

When you are evaluating quotes, watch for contractors who cannot tell you their thinset product by name, who do not mention resistance testing, or who give you a vague answer about the cure period. Those are the details that separate a skilled installation from a rushed one. A contractor who hands you a commissioning report with three sets of ohm readings and a sensor placement photo has done the job correctly.

The other thing worth saying plainly: radiant floor heating under tile is a comfort upgrade first. If your goal is to eliminate a furnace, you need a hydronic system sized for your building’s heat load, a tight building envelope, and a professional heat-load calculation. If your goal is to stop dreading cold tile on a winter morning, an electric mat in your bathroom is one of the most satisfying home improvements you can make for the money.

Trussell’s Transformations: local radiant tile remodels in Albuquerque

Radiant floor heating is one of those upgrades where the quality of the installation determines everything. The materials are straightforward; the execution is where projects succeed or fail. Trussell’s Transformations brings over 25 years of remodeling experience to every project in Albuquerque and the surrounding area, handling the full scope from substrate assessment and underlayment selection through tile installation and licensed electrical coordination.

For a radiant tile project, that means a site visit to assess your subfloor condition, a clear recommendation on electric vs hydronic based on your room size and goals, resistance documentation at every installation stage, and warranty paperwork you can keep on file. We work with licensed electricians and mechanical contractors so the permit and inspection process is handled, not handed off to you to figure out.

Whether you are planning a bathroom remodel or a larger home renovation in Albuquerque, we can walk you through the options, give you an honest cost estimate, and manage the project from start to finish. Request your estimate today and find out what heated tile floors would look like in your home.
